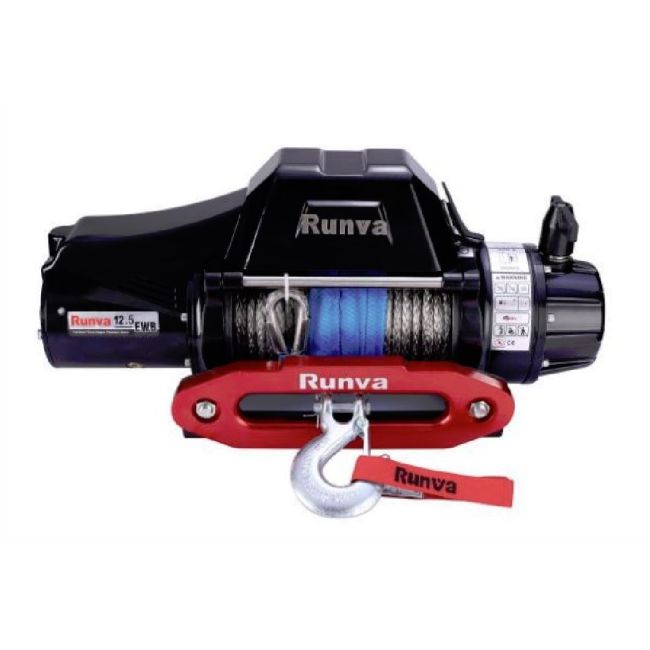

RUNVA EWB SRi 5700 (kg) 24V Winch - High performance remote control, Synthetic rope, IP67 Waterproof

The RUNVA EWB SRi 5700 24V Winch impresses with its robust construction and advanced technology. The patented waterproof design to IP67 standards ensures reliability under all conditions. The innovative brake in the gearbox ensures excellent, safe performance, while the stainless steel rotary clutch enables smooth operation.

The Synthetic rope, including high-quality radio remote control and aluminum diffuser, provides added versatility and convenience. The Hawkse Fairlead provides precise rope guidance. Stainless steel screws and high-quality materials ensure durability and corrosion resistance.

Technical Specifications (EWB12500):

• Rated tensile force: 5670 kg
• Motor: Permanent magnet, 12V/24V
• Gear ratio: 228:1
• Rope (diameter × length): Ø13/32"×83.7' (Ø 10.2mm×25.5m)
• Drum size (diameter × length): Ø 2.48"×8.5" (Ø 63mm×217mm)
• Mounting pattern: 10"×4.5" (254mm×114.3) 4-M10
• Dimensions (L×W×H): 601 × 160 × 254 mm (23.7 × 6.3 × 10.0 inches)
• Weight: 94.6/42.9 Ibs (kg)

The voltage, speed and current data (first layer) are as follows:

• 0 Ibs (0 kg): 10.0 m/min (32.8 ft/min) - 12V DC: 75 A, 24V DC: 60 A
• 3000 Ibs (1361 kg): 4.8 m/min (15.7 ft/min) - 12V DC: 190 A, 24V DC: 85 A
• 9000 Ibs (4082 kg): 8.2 ft/min (2.5 m/min) - 12V DC: 360 A, 24V DC: 150 A
• 5670 kg: 1.6 m/min (5.2 ft/min) - 12 V DC: 490 A, 24 V DC: 200 A

Pulling force and rope capacity in the layers:

• 1. Low: 5670 kg - 4.9 m (16.1 ft)
• 2. Low: 9776 Ibs (4434 kg) - 36.4 ft (11.1 m)
• 3. Low: 8026 Ibs (3641 kg) - 60.0 ft (18.3 m)
• 4. Position: 3088 kg - 25.5 m (83.7 ft)

The RUNVA EWB SRi 5700 24V Winch is the perfect choice for demanding applications. You can rely on its high performance and reliable operation, supported by a high-quality radio remote control and a durable Syntetic rope.
