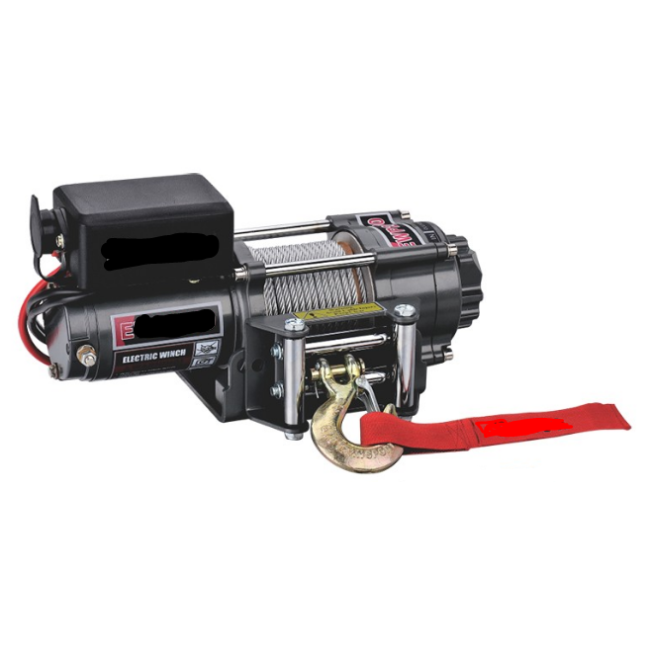

Runva 1500 kg EW 24 Volt - including radio remote control with 2 transmitters
€211.75 €175.00
Runva 1500 kg EW 24 Volt - includes radio remote control with 2 transmitters.
The EWP3500U is the latest version of the C 3500 (LBS) EWX series, with a tensile force of 3500 lbs (1588 kg). This 24-volt Winch from Runva offers impressive performance and reliability for a wide range of applications.
- Successor to the C 3500 (LBS) EWX series
- Motor: Permanent magnet, 12V: 2.4 kW / 3.2 hp, 24V: 2.9 kW / 3.9 hp
- Gear ratio: 170:1
- Cable diameter × length: Ø 7/32"×42.0' (Ø 5.4mm×12.8m)
- Drum size: Ø 1.46"×3.15" (Ø 37mm×80mm)
- Dimensions: 348 × 116 × 165 mm (13.7 × 4.6 × 6.5")
- Weight: 10.0 kg
SKU
5.G.3
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The Goldwinch EWP3500U Winch is the advanced successor to the proven C 3500 (LBS) EWX series. With an impressive towing capacity of 1588 kg (3500 lbs), it offers reliable performance for a wide range of applications.
The permanent magnet motor, available for 12V or 24V, delivers impressive power: 12V - Input: 2.4 kW / 3.2 hp, Power: 1.0 kW / 1.3 hp; 24V - Input: 2.9 kW / 3.9 hp, Power: 1.2 kW / 1.6 hp. The robust gearbox with a gear ratio of 170:1 ensures efficient power transmission.
The Ø 7/32"×42.0' (Ø 5.4mm×12.8m) rope provides adequate length and strength. The Ø 1.46"×3.15" (Ø 37mm×80mm) drum ensures reliable winding of the rope. Installation is easy thanks to the 79.5mm (3.13") 2-M8 mounting pattern.
Its compact dimensions of 348 mm × 116 mm × 165 mm (13.7 inches × 4.6 inches × 6.5 inches) and low weight of 10.0 kg (22.0 lbs) make this Winch versatile.
| SPECIFICATION | |||
| Rated pulling force |
1588 lbs. |
||
|
Motor: |
12V:Input: 2.4kW / 3.2hp; Power: 1.0 kW / 1.3hp |
||
|
Gear ratio |
170:1 |
||
|
Cable (Dia.× L) |
Ø 7/32"×42.0" (Ø 5.4mm×12.8m) |
||
|
Drum Size (Dia.×L) |
Ø 1.46"×3.15" (Ø 37mm×80mm) |
||
|
Mounting pattern |
79.5mm (3.13") 2-M8 |
||
|
|
|
|
|
|
Overall dimensions |
|
|
13.7"×4.6"×6.5" |
|
Net weight/ lbs (kg) |
|
|
22.0/ 10.0 |
| Pull force, speed, amperes, volts (first layer): | ||||
| Line Pull Force |
Line speed ft/min(m/min) |
Current A |
||
|
Ibs (kg) |
12V DC |
24V DC |
12V DC |
24V DC |
|
0 |
10.5(3.2) |
10.5(3.2) |
20 |
16 |
|
1000(454) |
8.9(2.7) |
9.5(2.9) |
75 |
40 |
|
2000(907) |
7.5(2.3) |
8.9(2.7) |
130 |
75 |
|
3500(1588) |
4,6(1.4) |
7.5(2.3) |
200 |
120 |
| Cable pull and cable capacity in layer | ||
| Lay of wire rope |
Nominal line pull lbs (kgs) |
Total cable on the drun ft (m) |
|
1 |
3500(1588) |
5.9 (1.8) |
|
2 |
2789(1265) |
13,5(4.1) |
|
3 |
2319(1052) |
22.0(6.7) |
|
4 |
1984 (900) |
31.2(9.5) |
|
5 |
1733 (786) |
42.0(12.8) |
| Winch Dimensions: |
|
|
| Weight | 9.000000 |
|---|---|
| HS Code | 842531-00-90 |
| Applications | Cars and vehicles, Boat trailers and water sports, Caravans and campers |
| Type of winch or parts | Pull winch: Cut load stands still or slides |
| Energy source | 24 V |
| Force | 201-500 |
| Speed (m/min) | 6-10 |
| Cable length (m) | 11-20 |
