RU EWS SRX 4536 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control
€1,681.90 €1,390.00
RU EWS SRX 4536 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control

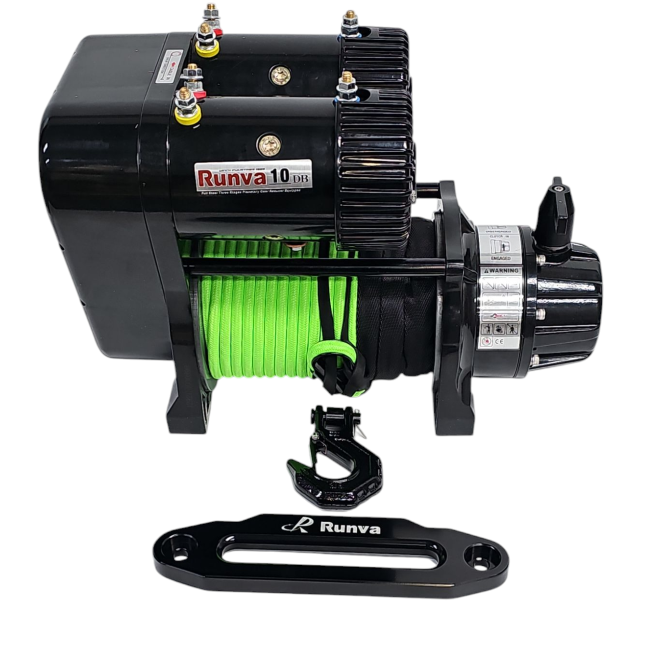

The powerful RU EWS SRX 4536 (kg) E 12V Winch offers an impressive pulling force of 4500 kg. Equipped with a high-quality radio remote control in addition to also a cable control. The winch comes with the new Lime-rope, the toughest winch rope available. Stronger even than steel.
The winch still works up to 1 meter underwater, IP67. This waterproofing ensures reliable performance in a variety of conditions.
Features:
Runva 10DB winch with 7.2HP (5.4KW) sealed motor
Waterproof IP67
"Multi Stop" 10% ratchet brake in the gearbox
Gear ratio 108:1, 3-stage planetary all-steel gear
Designed for the hard-core competition vehicle
SKU
3.H.2
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
RU EWS SRX 4536 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control
The powerful RU EWS SRX 4536 (kg) E 12V Winch offers an impressive pulling force of 4500 kg. Equipped with a high-quality radio remote control also a cable control. The winch comes with the new Lime-rope, the toughest winch rope available. Stronger even than steel.
The winch still works up to 1 meter under water, IP67. This waterproofing ensures reliable performance in a variety of conditions.
Features:
Runva 10DB winch with 7.2HP (5.4KW) sealed motor
Waterproof IP67
"Multi Stop" 10% ratchet brake in the gearbox
Gear ratio 108:1, 3-stage planetary all-steel gear
Designed for the hard-core competition vehicle
| Rated line pull | 4536 kgs |
| Motor:series wound | 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp |
| 24V:Input:5.3kW/7.1hp;Output:3.3kW/4.4hp | |
| Brake | Patented ractehet-paw |
| Geartrain | 3-stage planetary steel gear |
| Gear reduction ratio | 80:1 |
| Waterproof | IP67 |
| Lime-Rope | Ø10mm×24m |
| Drum size(Dia×L) | Ø72mm×214mm |
| Mounting bolt pattern | 54mm×114.3mm 4-M10 |
| Net weight | 61.9kgs |
| 12V DC PERFORMANCE SPECS (first layer) | |||
| Line Pull | Line Speed | Motor | Pull by layer |
| kgs | (M/min) |
Current | layer kgs |
| 0 | 9.0 | 150amps | 1-4536 |
| 1816 | 6.8 | 420amps | 2-3698 |
| 2722 | 5.7 | 580amps | 3-3121 |
| 4536 | 3.9 | 660amps | 4-2700 |
| Weight | 39.000000 |
|---|---|
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 6-10 |
