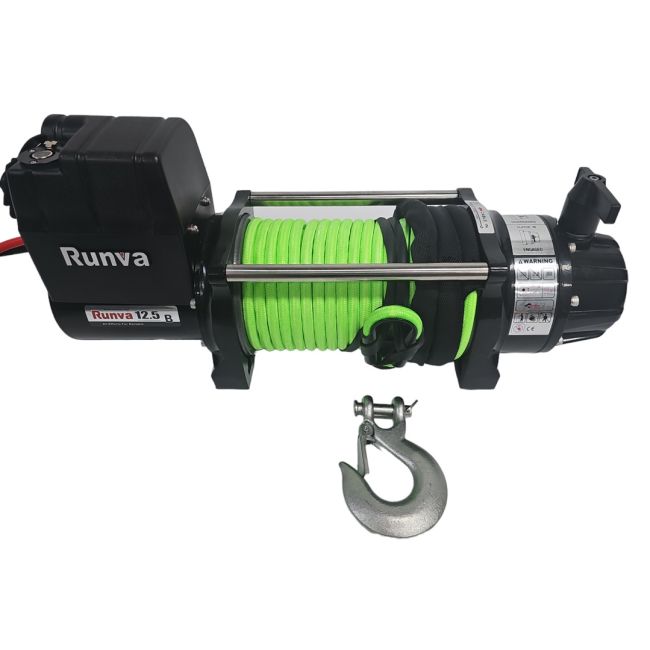

RU EWB SRX 5700 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control
€846.88 €699.90
RU EWB SRX 5700 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control
The powerful RU EWB SRX 5700 (kg) E 12V Winch offers an impressive pulling force of 5670 kg. Equipped with a high-quality radio remote control with two transmitters in addition to also a cable control. The winch comes with the new Lime-rope, the toughest winch rope available. Stronger even than steel.
The winch still works up to 1 meter underwater, IP67. This waterproofing ensures reliable performance in a variety of conditions.
SKU
4.H.1
EAN Number:
7439657013096
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
RU EWB SRX 5700 (kg) E 12V - Waterproof winch IP 67, Lime-rope super tough winch rope and ironclad, additional radio remote control
The powerful RU EWB SRX 5700 (kg) E 12V Winch offers an impressive pulling force of 5670 kg. Equipped with a high-quality radio remote control with two transmitters in addition to also a cable control. The winch comes with the new Lime-rope, the toughest winch rope available. Stronger even than steel.
The winch still works up to 1 meter underwater, IP67. This waterproofing ensures reliable performance in a variety of conditions.
As a signal color, the Lime color brings extra safety because it stands out well.
The RU EWB SRX 5700 (kg) E 12V Winch is a powerful solution for demanding applications. With an impressive traction force of 5670 kg, it handles challenges effortlessly. The series-wound 12V motor offers input power of 5.9 kW / 7.9 hp and output power of 2.4 kW / 3.2 hp, while the 24V option offers input power of 4.8 kW / 6.4 hp and output power of 3.1 kW / 4.2 hp.
The 228:1 gear ratio ensures reliable performance supported by a Ø10.2mm × 25.5m Synthetic rope. The Ø63mm × 217mm drum and 4-M10 mounting pattern of 254mm × 114.3mm provide a robust design. The Winch is equipped with a high-quality radio remote control for easy operation.
Technical data:
- Overall dimensions (L×W×H): 601mm × 160mm × 254mm
- Net weight: 43 kg
- EAN: 7439657013096
Characteristics:
- Operating voltage: 12V
- Speed: 6 m/min (>1.9 m/min)
- Traction force: 5700 kg
- Cable length: 25m
- Cable diameter: 10 mm
Warning: Please follow all safety instructions and guidelines before using the Winch.
Warranty: An extended warranty is included. Please refer to the warranty terms and conditions for more information.
| Rated pulling force | 5670 kg | |
| Motor: series wound | 12V: Input: 5.9kW / 7.9hp; Output: 2.4kW / 3.2hp 24V: Input: 4.8kW / 6.4hp; Output: 3.1kW / 4.2hp |
|
| Gear ratio | 228:1 | |
| Lime-Rope (Dia.× L) | Ø11mm×25m | |
| Drum Size (Dia.× L) | Ø63mm×217mm | |
| Mounting Bolt Pattern | 254mm×114.3mm 4-M10 | |
| Line speed Ampere Volts First layer | Line pull force and rope capacity in layer Line pull force | ||||||
| Line pull lbs.(kg) | Line speed m/min | Amperage A | Layer rope | Rated line pull force kg | Total cable on drum (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 5670 | 4.9 | |
| 0 | 10.0 | 10.6 | 75 | 60 | 2 | 4434 | 11.1 |
| 1361 | 4.8 | 5.3 | 190 | 85 | 3 | 3641 | 18.3 |
| 4082 | 2.5 | 3.1 | 360 | 150 | 4 | 3088 | 25.5 |
| 5670 | 1.6 | ||||||
| Item | EWB12500U | |
| Overall dimensions | ||
| (L×W×H) | 601mm ×160mm ×254mm | |
| Net weight kg | 43 kg |
| EAN | 7439657013096 |
|---|---|
| Weight | 39.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 6-10 |
