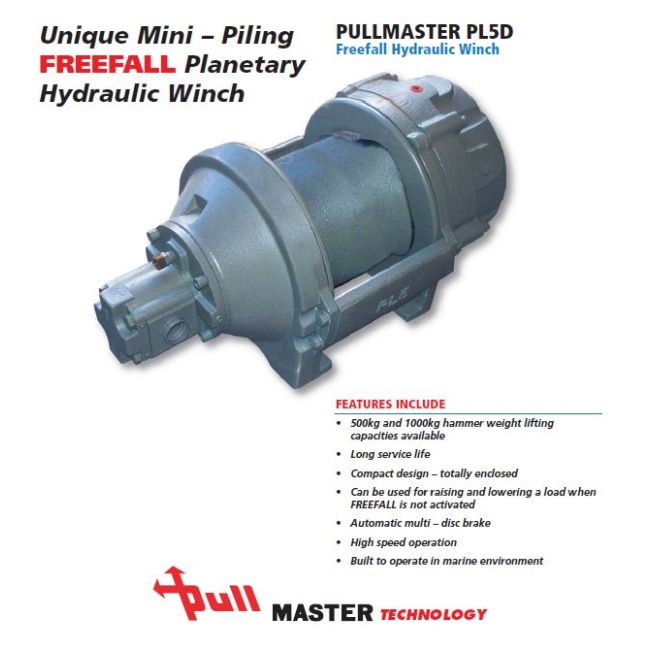

Pullmaster PL5-12-213-1D free fall
€9,534.80 €7,880.00
Model
| PL 5-12-213-1D Free fall |
Product Features
- Stainless steel drum seal
- Internal spring-actuated, hydraulically released brake with one-way slip clutch
- Unidirectional sprag clutch
- Planetary gear transmission with roller bearings throughout Winch assembly
- Free fall with full release (minimum resistance load approx. 50 kg due to internal friction)
Product Benefits
- Optimizes Winch performance for hydraulic system
- Promotes longer seal life
- Provides both static and dynamic braking functions; no balance valve required
- Sprag clutch does not lower load unless brake is hydraulically released
- Increased efficiency Winch
- Rapid free fall of a suspended load such as a piling hammer for example
SKU
1.UV.3
EAN Number:
7439657036026
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Model
| PL 5-12-213-1D Free fall |
Product Features
- Optional hydraulic motors
- Stainless steel drum seal
- Internal spring-actuated, hydraulically released brake with one-way slip clutch
- Unidirectional sprag clutch
- Planetary gear transmission with roller bearings throughout Winch assembly
- Free fall with full release (minimum resistance load approx. 120 kg due to internal friction)
Product Benefits
- Optimizes Winch performance for hydraulic system
- Promotes longer seal life
- Provides both static and dynamic braking functions; no balance valve required
- Sprag clutch does not lower load unless brake is hydraulically released
- Increased efficiency Winch
- Rapid deployment of a suspended load
Sales literature
Service/operating manuals
| EAN | 7439657036026 |
|---|---|
| Weight | 100.000000 |
| HS Code | 842531-00-90 |
| Energy source | Hydraulic |
| Force | 201-500 |
| Speed (m/min) | 20+ |
| Cable length (m) | 11-20 |
