Chain hoist 1,000 kg 400 V -10 m-2 speeds-radio remote control with 2 transmitters + cable control

Chain hoist 1,000 kg 400 V - 2 speeds-radio remote control with 2 transmitters-cable operation

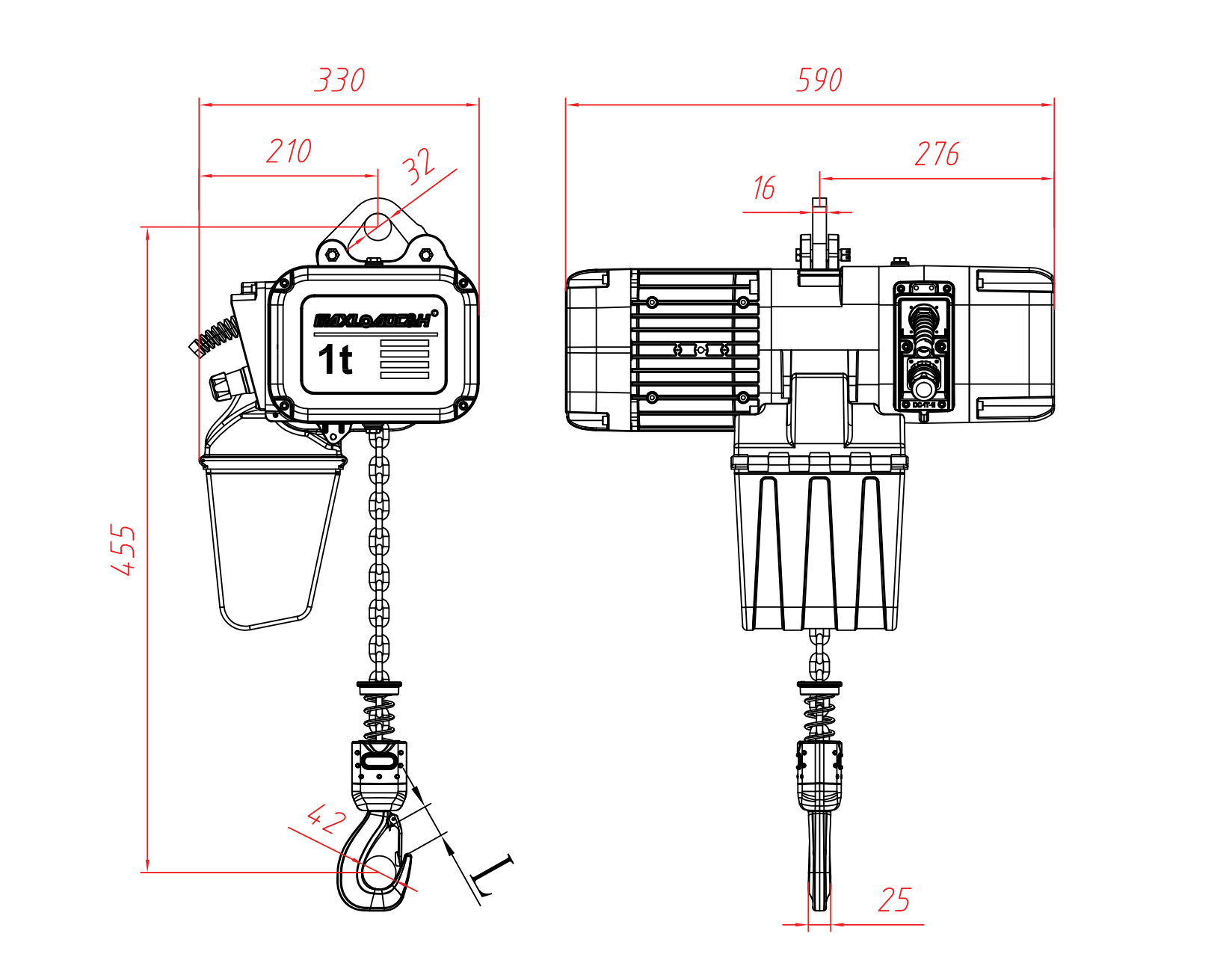

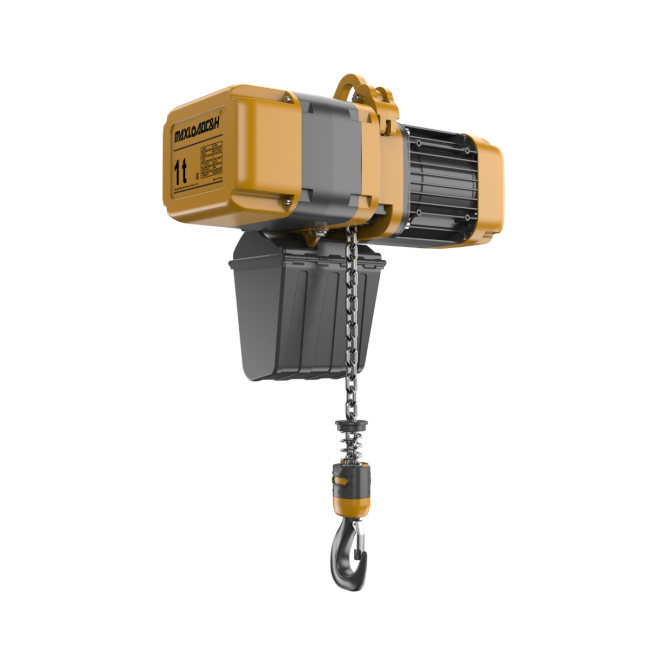

Hoist HHER01-01DS 400V/50 hz 10 mtr

• • SPECIFICATION
  • • Capacity: 1000kg
    • Lifting Speed: 6.7/2.2 m/min
    • Lifting motor: 1.5/0.6 kW
    • Input Voltage: 400v/50hz/3p

• ELECTRIC HOIST DATA
  • General:

• Operating environment

• Lifting Mechanism

• ELECTRICAL

• Connection 400 V

It may appear that the hoist does not work. With the 3 phases of 400 V, the hoist is protected against running in the wrong direction, so up arrow would then work in the wrong direction, for example, and the chain would go down. That is why the hoist does not seem to work. Reverse 2 phases and then the hoist will work. The radio control receiver will then also start to greet you with LED lights lighting up.

• Two-speed hoist with trolley

The hoist with trolley is prepared for an additional row direction. But for you apply the top row. Up and down .

Pressing the button halfway means the slow speed, pressing it further gives the highest speed.

• Switching on the radio transmitters

To switch on the transmitter, pull out the emergency stop and then press the two green buttons simultaneously. You will hear a sound and the receiver will indicate with the large red light that you can hoist and drive back and forth. This for you as information that you are connected and for everyone else as an additional warning not to stay near the hoist.

You have two transmitters. They can only work in turn, never simultaneously. However, the last one enabled by the two green buttons pushes the other one away. Until the other via the two green buttons again in simultaneous pressing would take over again.
