Chain hoist 5,000 kg 230 V -10 m-2 speeds-radio remote control with 2 transmitters + cable control

Chain hoist 5,000 kg 230 V - 2 speeds-radio remote control with 2 transmitters-cable operation

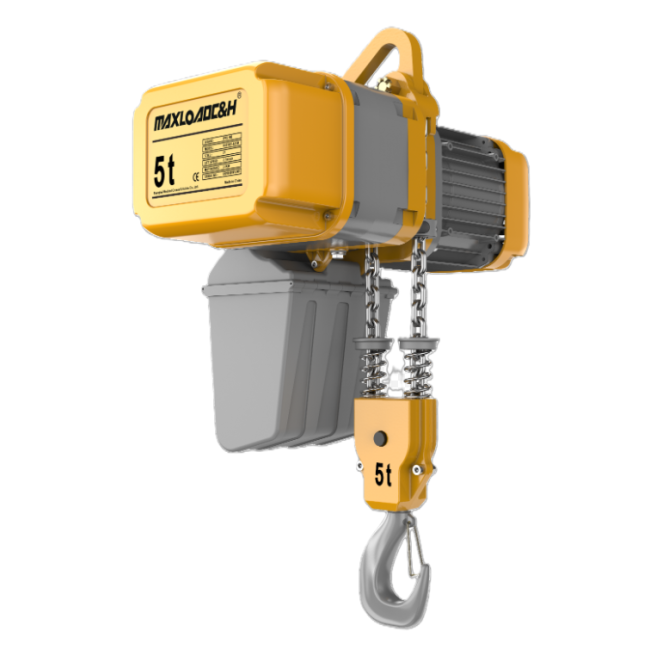

Hoist HHER05-02FS

• • SPECIFICATION
  • Capacity: 5 ton
  • Lifting Speed: 0.4~2.7 m/min - Inverter stepless
  • Lifting motor: 3.0 kW
  • Input Voltage: 230v/50hz/1p

,

• ELECTRIC HOIST DATA
  • General:
    • ELECTRIC HOIST DATA
      • General:

    Type ...........................................................	Chain Type with Motorized Trolley
    Model ..........................................................	HHER05-02FS
    Capacity .......................................................	5 ton
    Test load ......................................................	6.25 ton
    HS Code ......................................................	8425110000
    Noise level ....................................................	81 db

    • Operating environment

    Hoist use ......................................................	Indoor
    Operating temperature range ............................	-20℃ ~ +40℃
    Operating humidity range .................................	≤80%

    • Lifting Mechanism

    Hoist lifting speed ...........................................	0.4~2.7 m/min - Inverter stepless
    Motor power ..................................................	3.0 kW
    Rotation Speed ..............................................	1440 r/min
    Hoist group ....................................................	ISO/FEM 2m/M5
    Protection class .............................................	IP 66
    Load chain falls number....................................	2 fall
    Load chain size ..............................................	11.2 mm

    • ELECTRICAL

    Input Voltage .................................................	230v/50hz/1p
    Control Voltage ..............................................	24v

    Turning on the radio transmitters

To turn on the transmitter, pull out the emergency stop and then press the two green buttons simultaneously. You will hear a sound and the receiver will indicate with the big red light that you can hoist and drive back and forth. This for you as information that you are connected and for everyone else as an additional warning not to stay near the hoist.

You have two transmitters. They can only work in turn, never simultaneously. However, the last one enabled by the two green buttons pushes the other one away. Until the other via the two green buttons again in simultaneous pressing would take over again.
