LE R2 Transmitter - type Programmable on winch - 2 Functions - Emergency stop button
€82.28 €68.00

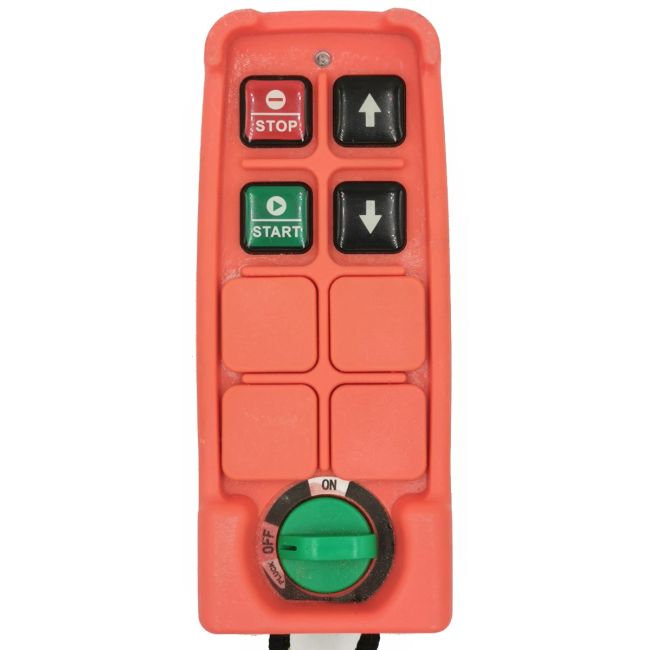

The LE R2 XX transmitter is a reliable radio remote control for precise operation. Easy programming of transmitter and receiver for versatile applications.
F

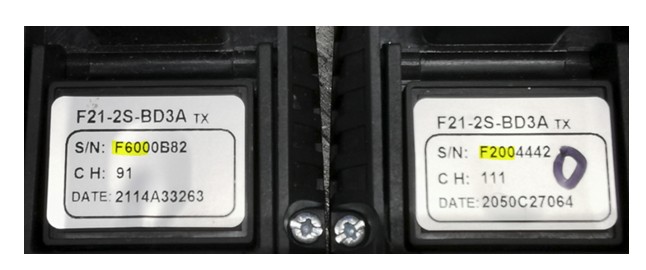

There are two types of transmitters. With F200, you can easily add the transmitter and have two transmitters. Unfortunately with F600, you can only replace a lost transmitter. The code from the F600 is then transferred to the receiver. The same can be done with the F200 for a lost transmitter. So the F200 works both ways to and from the transmitter to exchange the code. For the F600, one can only send the code from the transmitter to the receiver,.
The LE R2 XX transmitter allows precise control with high quality radio remote controls. To code, turn off the power to the receiver and remove the transmitter battery. Then hold down the "Up" and "Stop" buttons and insert the battery into the transmitter until the red LED flashes rapidly. After you connect the receiver to the power supply, the transmitter's red LED will change from fast to slow flashing to indicate the code assignment mode.
SKU
A.7.c.2
EAN Number:
7439656969905
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The LE R2 XX transmitter enables precise control with a high-quality radio remote control. To code, you must turn off the power to the receiver and remove the transmitter battery. Then hold down the "Up" and "Stop" buttons and insert the battery into the transmitter until the red LED flashes rapidly. After the receiver is connected to the power supply, the transmitter's red LED changes from fast to slow flashing to indicate the code assignment mode.
If the transmitter code and channel number are to be sent to the receiver, press "Up" to assign the code. Conversely, to send the receiver code and channel number back to the transmitter, press "Down" to complete the encoding process. After successful coding, the transmitter's green LED flashes once.
The F600 is programmable in one direction only. EN the code from the transmitter to the Receiver/Lower. That is UP. That limits the number of transmitters that can be programmed. You can program one as a replacement.
Do you want an additional one? Then we have to copy it for you at our workshop to the code of your existing transmitter. Then you have to send it to us.
If F200, you can also program with DOWN. The transmitter code is then copied. In this way you can program several transmitters.
Programming https://youtu.be/VbSOSedobn4
Winch has a child lock !!! / Child lock / Child safety
Press and hold the green button for 8 seconds
Warning: A new transmitter has no code assignment. Use the "Down" button to send the code from the receiver to the transmitter.
| EAN | 7439656969905 |
|---|---|
| Weight | 1.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
