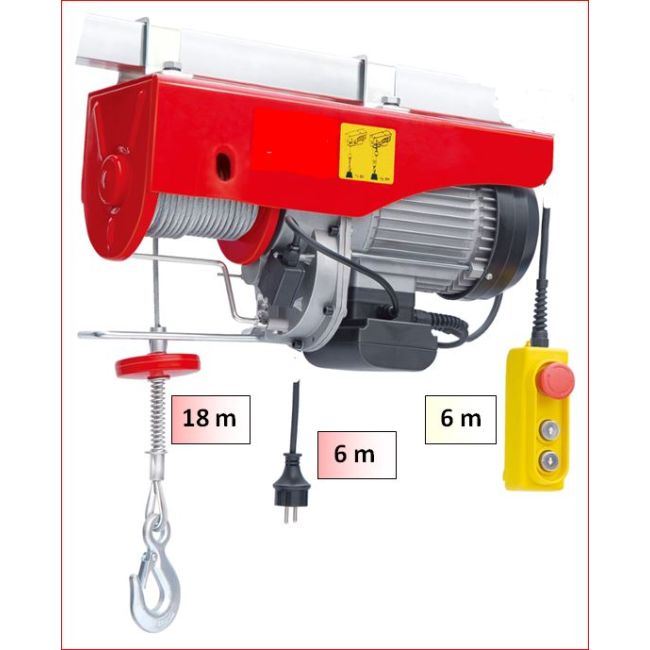

LE 500 XX 230V 500/1000 kg Electric Winch with hand control - Reliable lifting solution

This LE 500 XX electric wire rope winch is the perfect solution for efficient lifting and lowering of loads. With a load capacity of up to 500 kg and a lifting height of 18 m, it is extremely versatile. You can even hoist loads up to 1000 kg up to 9 m with the included pulley.

Technical specifications:

• Lifting height: up to 18 m
• Use with 6 m rope
• Lifting speed: 8 m/min
• Lifting capacity: up to 500 kg (1000 kg with pulley)

Safety features:

• Complies with European standard EN-14492-2:5006
• CE/TÜV/GS approved
• Thermal overload protection
• Upper and lower end stops
• Motor with thermal switch
• Steel cable 5.6 mm x 18 meters
• Emergency switch
• Automatic brake, even when de-energized
• Incl. deflection pulley
• Connection cable 230 V (6 meters long)
• TÜV, EMC, CE

This electric cable winch is easy to install thanks to its low weight of only 31 kg. The 6-meter-long power cable allows connection to a standard 230V plug. The winch can be easily suspended from a swing arm with a 50x50 mm square tube, or you can use the 4 screw holes for alternative mounting.

The flexible and twist-free steel cable ensures that the load is not twisted during lifting. The automatic brake keeps the load firmly in place even in the event of a power failure.

Options for extended functions:

• LE 500 XXT: With trolley for additional mobility.
• LE 500 R2: Winch with remote control
• LE 500 R4: Winch with remote control and trolley

The radio remote control models allow comfortable operation with 4 buttons: trolley forward/reverse and lifting/lowering the load.

This professional winch meets BS and EN-14492 standards, is TÜV/GS tested and CE certified. The powder-coated housing and aluminum motor part guarantee a long service life. The winch is IP 54 and suitable for outdoor use.

The motor is thermally protected against overload and the noise level is limited to approximately 71 dB(A).

Take advantage of our low prices by importing directly from the manufacturer.

*Please note the interruption times at full load for commissioning: S3 25%-10 min, e.g. 2.5 minutes continuous operation, 7.5 minutes pause (cycle 10 minutes).
