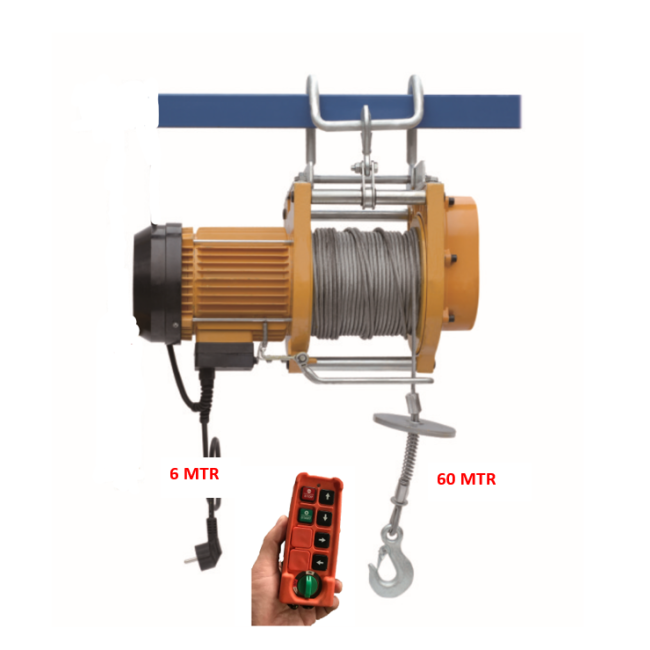

LE 250 R2 - Electric Winch with remote control 230V - 250 kg

The LE 250 R2 electric winch with a load capacity of 250 kg and a lifting height of 60 m is the ideal solution for versatile lifting tasks. The included professional remote control allows easy and safe rope entry and exit. The automatic brake and thermal overload protection allow safe work in different environments.

Technical Specifications:

• Model: 250 R2
• Voltage: 230V, 50Hz
• Current rating (A): 5.7
• Power consumption (W): 1300
• Load capacity (kg): 250
• Lifting height (m): 60
• Rated speed (m/min): 15
• Rope diameter (mm): 5.1
• Tensile strength of rope (N/mm²): ≥1870
• Insulation class: B
• Protection class: IP54
• Work cycle: S3 40%-10min
• Mechanism group: M1
• Recommended diameter of round rod (mm): 40-50
• Net weight (kg): 31

Functions and features:

• Lifting speed up to 15 m/min.
• Lifting height up to 60 m
• Lifting capacity up to 250 kg
• Thermal overload protection
• Child lock function
• Emergency switch and automatic brake
• Top and bottom stops
• Motor with thermal overload protection
• IP54 protection class for outdoor use
• Including pulley and 6 m connecting cable

Instructions for correct use:

• Avoid rapid up and down movements.
• Give the winch time between hoisting.
• Avoid slack rope and diagonal hoisting to avoid knots.
• If there is a knot, never try to loosen it with the winch.

The compact design makes this mini Winch a versatile device for a wide range of lifting applications. It is easy to install and offers a high level of safety thanks to its end stops, automatic brake and thermal overload protection. The powder-coated housing protects against dust and splash water, allowing it to be used outdoors.

Application areas:

• Construction sites
• Industrial halls
• workshops
• warehouses
• Goods elevators
