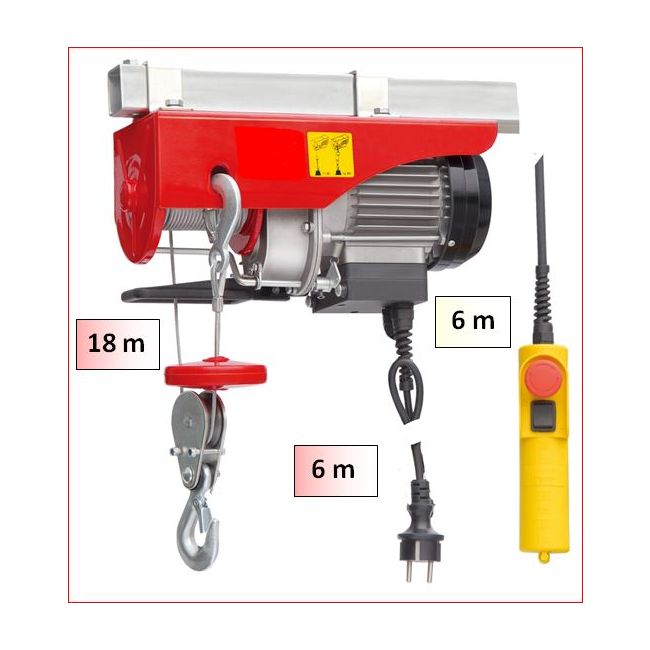

LE 200 XX 230V 18 m cable, 6 m control and power cable- Electric wire rope hoist with 200 kg lifting force

The wire rope hoist LE 200 XX 230V redefines efficiency with its 18-meter long steel wire rope (3.8 mm diameter) and additional 6-meter control cable with integrated emergency stop. This wire rope winch offers:

• Lifting force of 200 kg (400 kg with guide pulley)
• Top and bottom stops for precise positioning
• 8 meters per minute lifting speed
• Motor with thermal switch for safety
• IP54 protection class for reliability under various conditions
• Emergency switch for quick reaction
• Load hook with automatic brake for safe lifting and lowering
• Includes Reversing roller for extended applications (>200 kg & 4 m/min)
• 6 meter control cable for flexible operation
• Connection cable for main connection (approx. 6 meters long)
• TÜV, EMC and CE certifications for highest quality
• EN-14492-2 compliance

Technical specifications/features:

• Complies with EN-11492-2 standard and patented design
• CE/GS/EMC/RoHS approval
• Upper and lower limitation function
• Function against reverse winding
• Emergency stop switch
• Thermal circuit breaker
• Protection class IP54
• Insulation class B
• Mechanism group M1
• Work cycle: S3-25%-10min
• Rated voltage: 220/230V ~ 50Hz
• Rated current: 3.3A
• Input power: 750W
• Lifting weight: 200kg (single cable), 400kg (double cable)
• Lifting height: 12m (single cable), 6m (double cable)
• Lifting speed: 8m/min (single rope), 4m/min (dual rope)
• Steel wire rope diameter: 3.8 mm
• Tensile strength of wire rope ≧ 1770N/mm2

Harmonization code (HS code):

• 8425 1100

Warning: please follow all safety instructions before using the wire rope hoist.

Warranty: This product is covered by our warranty conditions. Please read the warranty information carefully.
