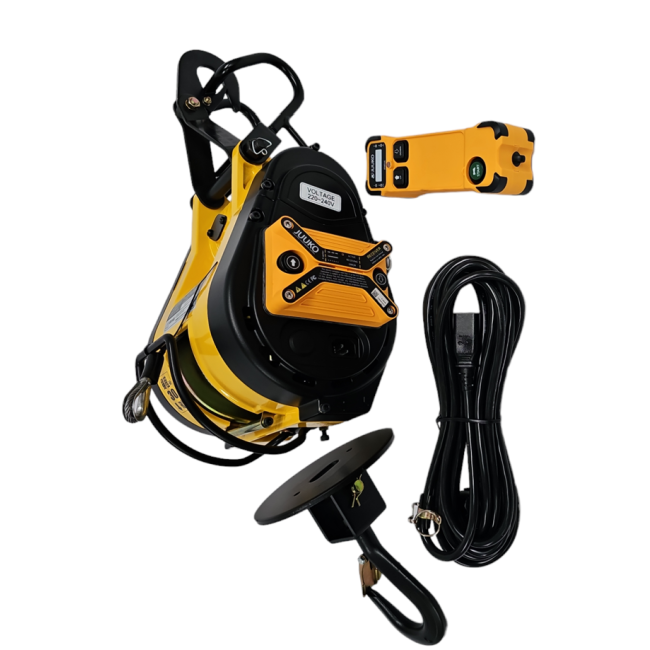

KIO SRW 300 (kg) 230V 30 m - Electric Lifting Winch - Radiographic Remote Control

With a remote control and a button on the winch itself.

Low weight
For easy installation
Stops automatically and the and lower top position.
Dynamic and mechanical ratchet brake
For fast and safe braking.
Works with local power supply.
The cable is equipped with a hook with safety catch.
Emergency stop function is available on request.

Specifications:
Load capacity: 300 kg upper position of the cable
Lifting speed: 10 - 16 m/min
Protection class of the motor IP44:
1 Phase, 220-240 V : 1 5 kw x 12.5 A, 50 hz
25 % duty cycle / ED
Maximum lifting height: 30 m
Braking technology:
For the motor: Electromagnetic
For the gearbox: Mechanical double ratchet
Steel cable: 4.8 mm x 31 m
Net weight, kg: 14 kg
Gross weight: 20 kg incl. cable

Easy to attach to scaffolding. The unique design and elegant shape make transporting construction materials, etc. to upper floors and roofs much easier and safer.

The suspension with locking mechanism facilitates installation and ensures safe working.

The ideal hoist for construction workers and roofers with a long rope length. The ideal hoist for all types of scaffolding and beams.

The high-quality powder-coated construction provides a reliable and durable hoist.

The hoist uses a dynamic braking system for both static and dynamic loads with upper and lower limit switches.

Warning

This product is not intended for lifting or moving persons.
Keep hands, clothing, jewelry, etc. safe. Keep hands, clothing, jewelry, etc. away from cables, drums and other moving parts.

Warranty
Each new hoist is warranted against manufacturing and material defects for a period of 24 months from the date of purchase.
STEEL WIRE ROPES ARE NOT COVERED UNDER WARRANTY.

Never toggle (shift in rapid succession without pausing) the winch, i.e. drive straight up and down or up and down for short stretches.

Give the winch time to release its energy.

Pull the cable.

Prevent the cable from warping and becoming slack. If that happens, the cable will be pulled through the lower layers and get stuck or run off the drum.

Never try to disconnect the cable with the winch itself. This will destroy the motor.
