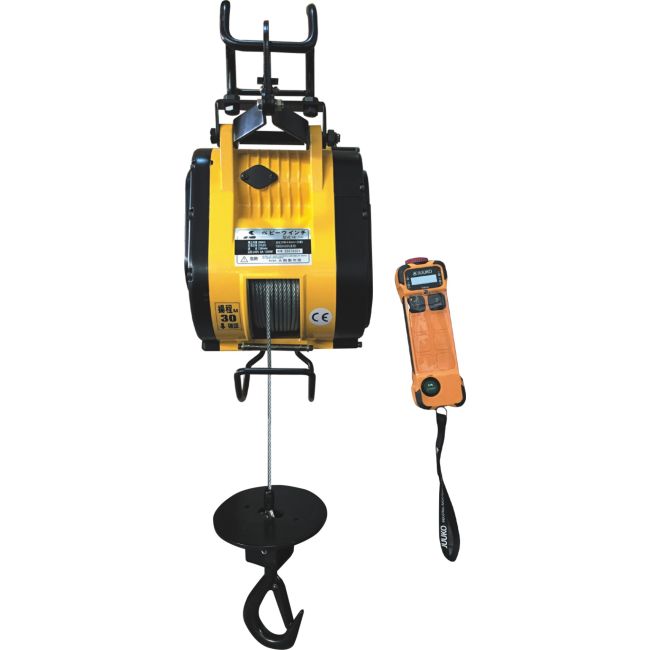

KIO SRW 100 (kg) 230V 40 m - Electric Lifting Winch - Radiographic Remote Control
€1,040.60 €860.00
The SRW-100 Winch offers great versatility with a load capacity of 100 kg, radio-controlled operation, and a compact design. It features upper and lower limit switches, a dynamic brake, and easy operation.
SKU
1.G.2.a
EAN Number:
7439657020056
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The SRW 100 Winch has a load capacity of 100 kg, a radio-controlled remote, and a button on the winch itself, with a range of up to 70 meters. Its lightweight and compact design allows for easy installation. The upper and lower limit switches automatically stop the winch when the rope is touched or when the rope is fully wound up at the bottom. The dynamic and mechanical ratchet brake ensures immediate and safe braking. The winch can be used with a standard power supply and features a safety hook on the steel cable. An emergency stop switch is available upon request.
-
Technical details at a glance:
- Load capacity: 100 kg on the top strand of the steel cable
- Lifting speed: 40–50 m/min (option: speed control available)
- Motor class IP44: 1-phase, 220–240 V, 1.3 kW x 5 A
- 25% duty cycle / ED
- Maximum lifting height: 40 m
- Braking methods: electromagnetic for the motor, dual mechanical ratchets for the gearbox
- Steel cable: 4 mm x 40 m
- Net weight: 14 kg, gross weight: 21 kg including cable
Performance values are based on a 50 Hz power supply. The winch is not intended for moving or lifting people. Hands, clothing, jewelry, etc., must be kept away from the steel cable, drum, and other moving parts. Every new winch is guaranteed against defects in workmanship and materials for a period of 24 months from the date of purchase. Cables are excluded from the warranty.
| EAN | 7439657020056 |
|---|---|
| Weight | 21.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 20+ |
| Cable length (m) | 11-20 |
