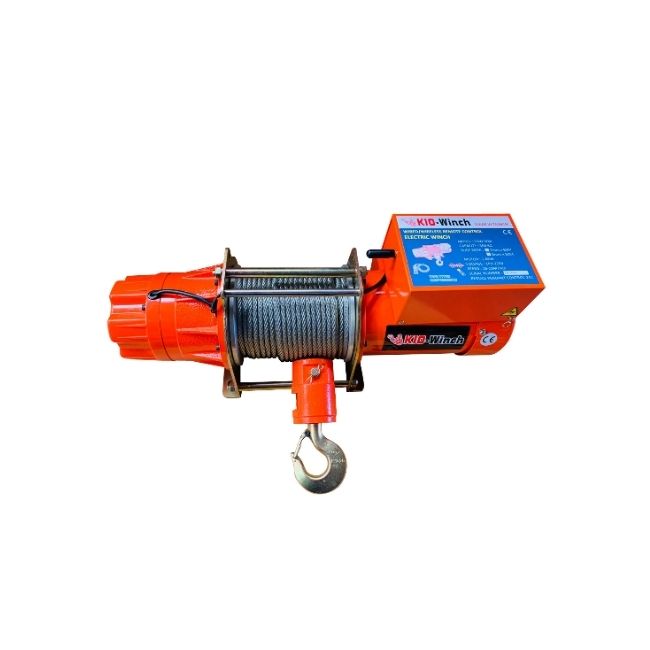

KIO GSW 500L 380V 500 kg 60 m - Electric Lifting Winch - Radiographic Remote Control

Experience maximum performance with the KIO GSW 500L electric cable winch. This professional hoist with a load capacity of 500 kg and a cable length of 60 m is equipped with a radio remote control to give you maximum flexibility. The friction-locked attachment of the cable to the drum, electromagnetic spring-loaded ground fault brake and closed drum flange design ensure safe and efficient use. Rely on this electric cable winch for outstanding performance in demanding applications.

SEO Detailed Description:

The KIO GSW 500L electric wire rope winch is the answer to professional lifting requirements. With a lifting capacity of 500 kg and a cable length of 60 m, it offers reliable performance in a variety of applications. With the included cable remote control and radio remote control, it can be easily operated remotely.

Technical specifications:

• Motor: 380 V / 1800 W
• Lifting forceWeight: 500 kg
• Cable diameter and length: 7 mm x 60 m
• Speed: 18-23 m/min
• Net weight: 64 kg
• Gross weight: 65 kg
• Dimensions (in mm): A - 205, B - 160, C - 310, D - 260, E - 720, F - Ø180, G - Ø90, H - 210

Advantages:

• Forced steel cable attachment for safe use
• Electromagnetic spring-operated residual current device for added safety
• Powerful ball bearings for efficient and quiet operation
• Closed drum flanges prevent cable entrapment
• Includes radio remote control for flexible operation

Warning: Winches should not be used to move people.

Warranty: Enjoy the security of a 24-month warranty against manufacturing and material defects. Cables are not covered by the warranty.

Notes:

• This winch is ideal for lifting boats on ramps, towing loads in containers and other outdoor applications.
• When used outdoors, a cover over the winch is recommended.
• When used as a towing winch, the force can be multiplied by a factor of 7.
• The pulling force of the drum is reduced by about 10% for each layer.
• Use a Turning Roller to double Lifting Force, with an increase in force of about 85% at half speed.
