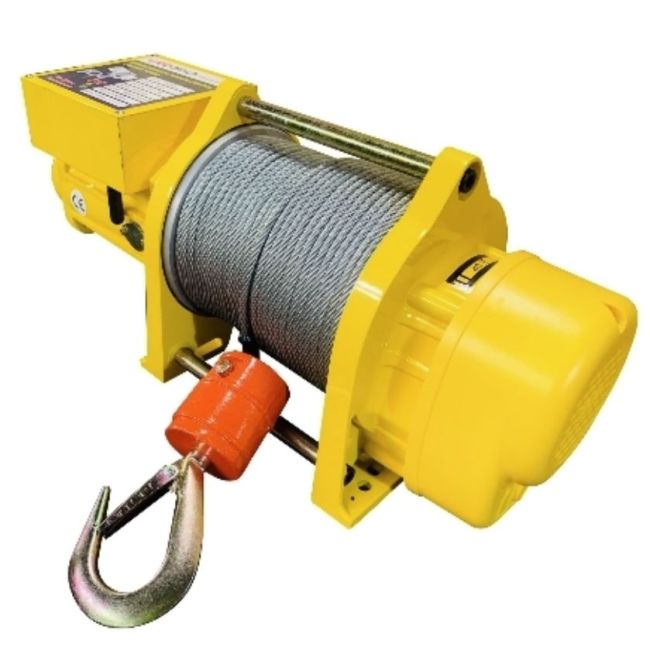

KIO CKW 300LL 230V 300 kg 110 m - Electric Lifting Winch - Radiographic Remote Control and Hand Control 10 mtr
€1,790.80 €1,480.00
KIO CKW 300LL 230V 300 kg 110 m - Electric Lifting Winch
Radio remote control and hand control 10 mtr and 6 mtr power cable
Professional electric hoist with 300 kg capacity and 110 m steel cable 5 mm. Includes radio remote control for easy operation. Also 10 mtr cable bedeining, easy to operate at the winch itself in addition to the radio control.
Ideal for various applications such as lifting loads and moving boats, tockel tracks etc.
Features:
- Electromagnetic spring operated brake
- Highly efficient high performance ball bearings
- Planetary gearbox for maximum efficiency
- Closed drum flanges for safety
- Quiet operation
SKU
1.G.4
EAN Number:
7439656973926
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
KIO CKW 300LL 230V 300 kg 110 m - Electric Hoisting Winch
The KIO CKW 300 LL is a professional electric hoist with an impressive 300 kg capacity and a 110 m long steel cable. It has an electromagnetic, spring-operated brake for maximum safety. Thanks to high-quality ball bearings, efficient performance is guaranteed on all running surfaces.
The planetary gearbox ensures mechanically efficient operation. The closed drum flanges prevent cables from becoming trapped between the drum and support castings. The winch also operates very quietly.
Please note that hoisting winches should not be used to transport people. The winch has a warranty against manufacturing and material defects of 24 months from the date of purchase, but steel cables are not covered by the warranty.
The KIO CKW 300 LL is ideal for lifting loads and moving boats on ramps. It is suitable for outdoor use, but it is recommended that a canopy be used over the winch.
| Specifications | ||
| Load capacity (kg) | 300 | |
| Lifting speed m/min | First layer | 16 |
| Upper layer | 25 | |
| Motor KW × A | Type | Series wound |
| 220V-240V | 2,3×11 | |
| Maximum lifting height m | 108 | |
| Braking methods | For motor | Electromagnetic brake |
| For gearbox | Mechanical brake | |
| Wire rope | Diameter mm | 5 |
| Length m | 110 | |
| Structure | 7×19 | |
| Dimension drum mm | width | 185 |
| Drum diameter | 93 | |
| Diameter flange | 190 | |
| Bolt pattern mounting mm | 94×240 | |
| 135×255 | ||
| Net weight kg | 42 | |
| Gross weight kg | 42 | |
| EAN | 7439656973926 |
|---|---|
| Weight | 42.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
