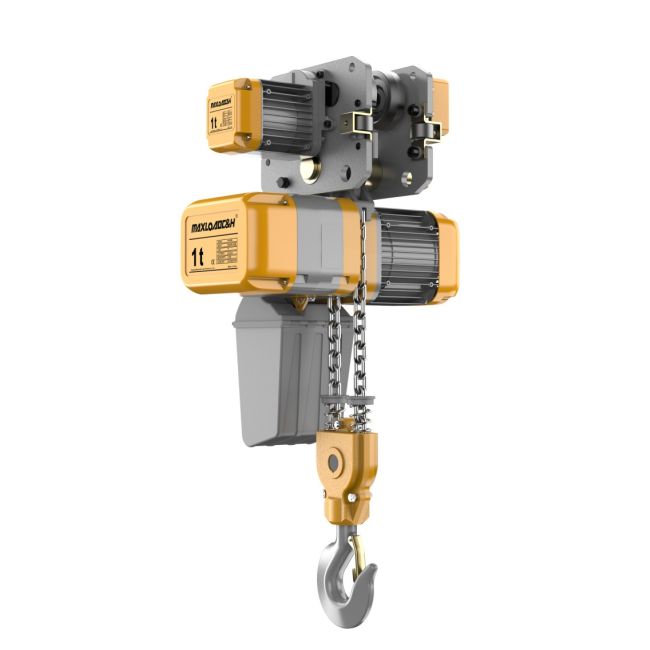

Chain hoist 1,000 kg trolley 230 V -10 m-2 speeds-radio remote control with 2 transmitters-cable operation

Chain hoist 1,000 kg trolley 230 V - 2 speeds-radio remote control with 2 transmitters-cable operation

Hoist HHER01-01FMF 230V/50 hz 10 mtr

• SPECIFICATION

  • Capacity: 1000kg
  • Lifting Speed: 6.7/2.2 m/min (2-speed)
  • Lifting motor: 1.5/0.6 kW
  • Travelling Speed: 11/3.5 m/min (2-speed)
  • Travelling Motor: 0.5/0.2 kW
  • Input Voltage: 230 v / 50hz/

• • ELECTRIC HOIST DATA
    • General:

  Type ...........................................................	Chain Type with Motorized trolley
  Model ..........................................................	HHER01-01FMF
  Capacity .......................................................	1 ton
  Test load ......................................................	1.25 ton
  HS Code ......................................................	8425110000
  Noise level ....................................................	81 db

  • Operating environment

  Hoist use ......................................................	Indoor
  Operating temperature range ............................	-20℃ ~ +40℃
  Operating humidity range .................................	≤80%

  • Lifting Mechanism

  Hoist lifting speed ...........................................	6.7/2.2 m/min
  Motor power ..................................................	1.5/0.6 kW
  Rotation Speed ..............................................	1440/470 r/min
  Hoist group ....................................................	ISO/FEM 2m/M5
  Protection class .............................................	IP 66
  Load chain falls number....................................	1 fall
  Load chain size ..............................................	7.1 mm

  • Travelling Mechanism

  Trolley traveling speed ....................................	0.8/6.8 m/min - Inverter stepless
  Motor power ..................................................	0.5 kW
  Rotation speed ..............................................	1440 r/min
  Trolley traversing group ...................................	ISO/FEM 2m/M5
  Protection class .............................................	IP 66
  I-Beam suit size ..............................................	52-153 mm

  • ELECTRICAL

  Input Voltage .................................................	230v/50hz/1p
  Control Voltage ..............................................	24v

  • QUOTATION INCLUDE BELOW PARTS

  Hoist Body ....................................................	1 pc
  Motor Monorail Trolley .....................................	1 pc
  Control Cable (with Button Switch) .....................	1 pc
  Remote control................................................	2 sender+1 receiver

• Trolley mounting

The width dimension for the 4 horizontal wheels should be adjusted to the flange width of the bar into which the trolley is to move. You then add the washers from the cotter pin around the bar on the outside, such that the cheeks of trolley can no longer slide outward. The rings on the inside are for spare. Because of the wheels, the cheeks cannot slide further in, and because of the rings on the outside up to the cotter pin, the cheeks cannot slide out now either. The plates under the flange secure the trolley against slipping out.

• Two-speed trolley hoist

The hoist with trolley is prepared for one more row direction. But for you, the top two rows apply. Up and down and back and forth in a horizontally suspended beam.

The top row for up and down and the second row for going back and forth, the trolley is also called trolley.

Pressing the button halfway means the slow speed, pressing the button further gives the highest speed. This for hoisting and also for walking back and forth of the trolley.

• Switching on the radio transmitters

To switch on the transmitter, pull out the emergency stop and then press the two green buttons simultaneously. You will hear a sound and the receiver will indicate with the big red light that you can hoist and walk back and forth. This for you as information that you are connected and for everyone else as an additional warning not to stay near the hoist.

You have two transmitters. They can only work in turn, never simultaneously. However, the last one enabled by the two green buttons pushes the other one away. Until the other via the two green buttons again in simultaneous pressing would take over again.
