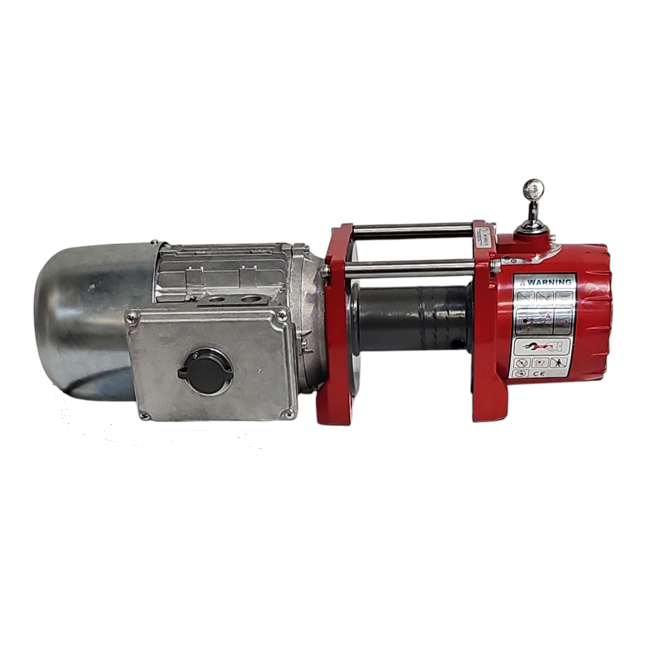

Goldwinch Short Drum 1200 kg Lift - 2500 kg Pull - Electric Winch 230VAC 14 m 3-5 m/min
€1,754.50 €1,450.00
Goldwinch 1200 kg hoisting winch 230 V 3-5 m/min , more than 2400 kg pulling force IP 54
Short Drum
Options:
Winch rope
Steel cable
Winch swivel: PB331 manual winch with emergency stop 6 mtr cable and/or radio remote control TELEPP CP 5
Under plate WPT 166
SKU
6.G.1
EAN Number:
7439657045097
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Goldwinch 1200 kg lifting winch 230 V 3-5 m/min , more than 2400 kg pulling force IP 54
Options:
Winch rope
Steel cable
Hand-operated winch: PB331 hand control with emergency stop 6 mtr cable and/or radio remote control TELEPP CP 5
Under plate WPT 166
- Gear ratio: 230:1
- Cable capacity Ø10 mm × 14.0 m
- Drum size (diameter × length): Ø63 mm × 120 mm
- Mounting pattern: 151 mm × 114.3 mm 4-M10
- Overall dimensions (L × W × H): 540 mm × 160 mm × 283 mm
- Net weight: 33 kg
| EAN | 7439657045097 |
|---|---|
| Weight | 45.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 201-500 |
| Speed (m/min) | 0-5 |
