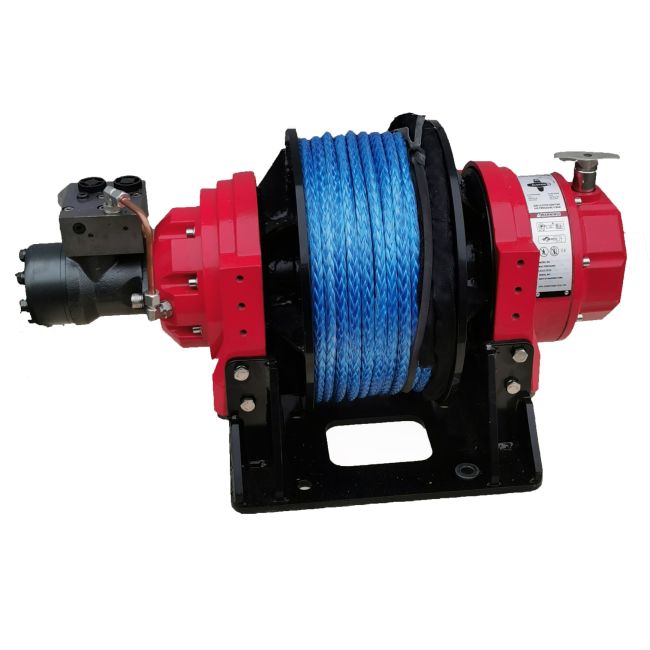

Goldwinch HWV 6804 (kg) Big Drum - top-of-the-line hydraulic winch

Goldwinch HWV 6804 (kg) Hydraulic Winch with a Big Drum

The Goldwinch HWV 6804 (kg) Big Drum is a premium hydraulic winch that combines performance and versatility. With a capacity of 6804 kg in the first shift, this winch offers first-class performance for demanding applications.

Technical Specifications:

• Displacement motor: 160 ml/r
• Oil flow: 5~60 L/min
• Pressure: 16 Mpa
• Gear ratio: 17.3:1
• Cable diameter: Stbs
• Drum dimensions (Ø×L): Ø200 mm×155 mm Flange 340 mm
• Mounting pattern: 303.5 mm×114.3 mm or 368.5 mm×171.2 mm 4-M12

Performance in different situations:

• First layer:

  • Tensile force: 6804 kg
  • Speed: 1.3 m/min

• Second layer:

  • Traction force: 5807 kg
  • Speed: 2.6 m/min

• Third layer:

  • Traction force: 5062 kg
  • Speed: 3.8 m/min
• Etc.

The Goldwinch HWV 6804 (kg) large drum has a robust drum diameter of 127 mm and a flange of 340 mm with a width of 155 mm. Weighing 110 kg, it is a reliable partner for demanding applications.

Item number: 7.0

The following fits on this winch , for example:

1. 8 mm 190 mtr Synthetic rope
2. 12 mm 70 mtr Synthetic rope
3. Strap/Strap/Rope 150 mm 30 mtr 15 T

The Goldwinch HWV 6804 (kg) Big Drum offers a combined air and hand clutch for added flexibility.

This professional hydraulic winch is ideal for demanding applications where performance and reliability are critical.
