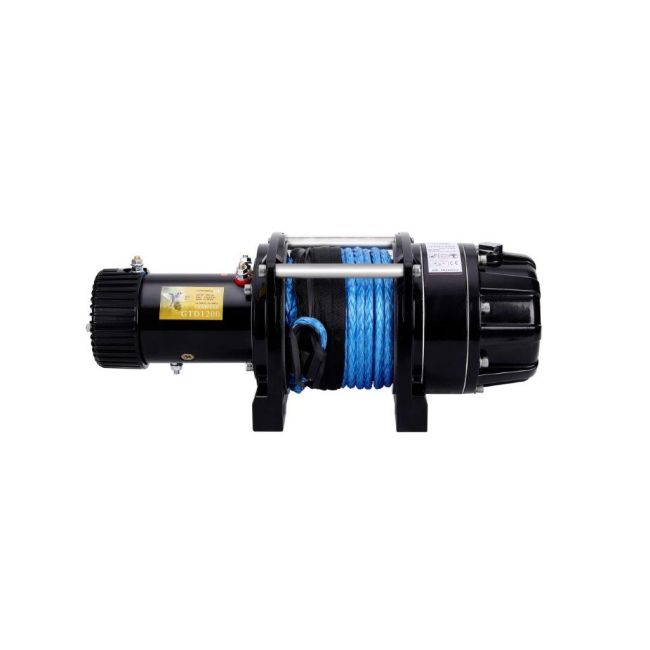

Goldwinch GT 1200 (kg) SY 12 VDC 18 m - Electric Lifting Winch - Radio Remote Control - Winch Rope - Security - IP 67

With a rated lifting capacity of 1200 kg, this winch meets the highest safety standards according to EN 14492-2, with a safety factor of more than 5 for the wire rope and more than 7 for the high-quality winch rope.

Technical data and features:

• Motor: Series wound motor
• 12V: Input: 5.5kW / 7.4hp; Output: 2.9kW / 3.9hp
• 24V: Input: 6.1kW / 8.2hp; Output: 3.1kW / 4.2hp
• Gearbox reduction ratio: 370:1
• Cable (diameter × L):
• Steel rope: Ø8.1mm × 18m
• Synthetic rope: Ø10mm × 14m
• Drum size (Dia. × L): Ø120mm × 130mm
• Pattern of fastening screws:
• 171.4mm × 114.3mm
• 171.4mm × 165.1mm 8-M12
• Dimensions (L×W×H): 553mm × 214mm × 222mm
• Line pull:
• Line speed ft/min (m/min):
• 12V DC:
• 1450 kg, 3.5 ft/min (1.1 m/min)
• 1300 kg, 3.9 ft/min (1.2 m/min)
• 1200 kg, 4.3 ft/min (1.3 m/min)
• 24V dc:
• 180 kg, 3.7 ft/min (1.1 m/min)
• 190 kg, 4.1 ft/min (1.2 m/min)
• 200 kg, 4.5 ft/min (1.4 m/min)

Special Features:

• Comes with radio remote control, hand control with emergency stop, overload protection.
• Special synthetic cable, stronger than a steel cable of the same thickness.
• Twist-free steel cable for safe load guiding.
• Overload protection by amperage control.
• Density class IP67 for outdoor use.

Applications:

The Winch is perfect for hoisting ship anchor pipes, loading material into a car with a davit or loading and unloading cargo on board or from a ship. Wherever direct current is available, this compact electric lifting device shows its performance.

Note:

The force specification refers to the top layer on the drum. Force on layers below may be higher.

Warranty:

This Winch comes with an extended warranty. Details can be found in the attached warranty statement.

Warning:

Correct use of the winch according to the instructions is essential for safety. Please read the operating instructions carefully before using the unit.
