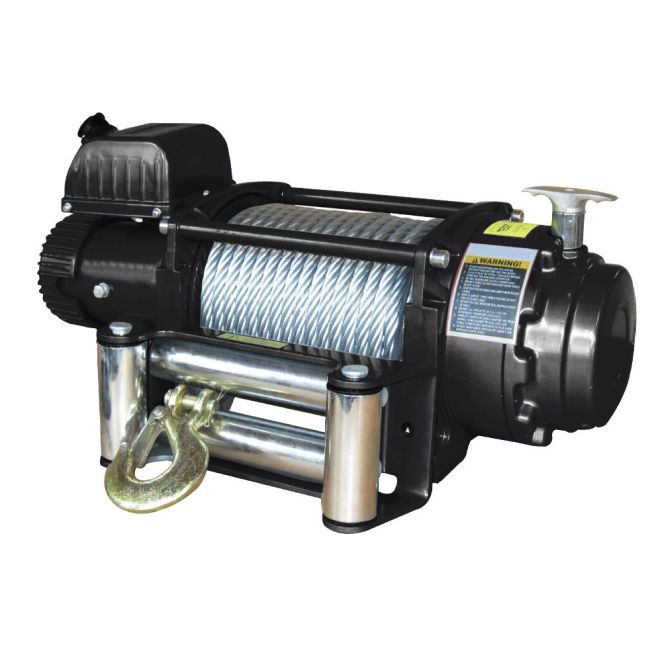

Goldwinch 8000 (kg) N 12 V - Winch with radio control, 7938 kg pulling force
€1,064.80 €880.00
The Goldwinch 8000 (kg) N 12 V Winch is equipped with radio control and offers an impressive towing capacity of 7938 kg. Ideal for versatile applications, this Winch is characterized by its powerful series-wound motor technology and rugged construction.
SKU
3.J.2
EAN Number:
7439657030055
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The Goldwinch 8000 (kg) N 12 V Winch is the perfect solution for demanding towing applications. With a towing capacity of 7938 kg, it provides the necessary performance for various tasks.
Technical data:
- Motor: Series wound
- Input 12V: 5.4 kW / 7.2 hp; Power: 2.9 kW / 3.9 hp
- Input 24V: 6.0 kW / 8.0 hp; Power: 3.1 kW / 4.1 hp
- Gear ratio: 430:1
- Cable (diameter × length): Ø12 mm × 26.5 m
- Drum size (diameter × length): Ø89mm × 219mm
- Mounting pattern: 254 mm × 114.3 mm + possibly 254 mm × 165.1 mm 4 v 8-M12
- Overall dimensions (L × W × H): 620mm × 214mm × 290mm
- Net weight: 67.0kg
Remark:
Please read carefully the notes, warnings and warranty information below.
- The lower layers may move even more load than indicated.
- The customer should judge the given conditions by himself.
- Road/sand corresponds to normal car conditions.
| SPECIFICATION Goldwinch 8000 INCLUDING RADIO CONTROL / Radio Remote Control | ||
| Rated towing capacity |
7938 kg |
|
|
Motor: series wound |
12V: Input: 5.4 kW / 7.2 hp; Power: 2.9 kW / 3.9 hp |
|
|
Gear ratio |
430:1 |
|
|
Cable (Dia.× L) |
Ø12mm×26.5m |
|
|
Drum Size (Dia.× L) |
Ø89mm×219mm |
|
|
Mounting Bolt Pattern |
254mm×114.3mm + possibly 254mm×165.1mm 4 v 8-M12 |
|
|
item |
Goldwinch 8000(kg) |
|
|
Overall dimensions |
|
|
|
Net weight |
67.0 |
|
| Line pull force, speed, amps, volts (first layer): | ||||
| Line Pull Force |
Line speed m/min |
Amperage A |
||
|
Ibs (kg) |
12V DC |
24V DC |
12V DC |
24V DC |
|
0 |
6.0 |
4.4 |
100 |
40 |
|
2722 |
2.2 |
2.1 |
220 |
100 |
|
4536 |
1.7 |
1.8 |
320 |
140 |
|
5670 |
1.5 |
1.6 |
350 |
180 |
|
6350 |
1.4 |
1.4 |
380 |
200 |
|
7938 |
0.9 |
1.2 |
450 |
250 |
| Tensile strength and rope capacity in low | ||
| Layer |
Rated line pull kg |
Total rope on the drum m |
|
1 |
7938 |
6.0 |
|
2 |
6414 |
13.0 |
|
3 |
5381 |
21.0 |
|
4 |
4634 |
26.5 |
Towing capacity / How much load can be pulled / Moveable load
| Min. force | 4634 | kg upper layer, lower layers have more force! | |||||
| W pulling | kgf | ||||||
| Degrees | % cm/m Slope | Metal | Road/Sand | Gravel | Soft sand | Mud | Marsh/clay |
| 0 | 0 | 30893 | 25744 | 23170 | 21064 | 14481 | 8912 |
| 3 | 5 | 22067 | 19308 | 17823 | 16550 | 12195 | 7990 |
| 6 | 10 | 17823 | 15979 | 14948 | 14042 | 10777 | 7356 |
| 11 | 20 | 13240 | 12195 | 11585 | 11033 | 8912 | 6436 |
| 17 | 30 | 10298 | 9654 | 9268 | 8912 | 7474 | 5651 |
| 27 | 50 | 7854 | 7474 | 7241 | 7021 | 6097 | 4827 |
| 35 | 70 | 6348 | 6097 | 5941 | 5793 | 5149 | |
| 45 | 100 | 5452 | 5266 | 5149 | 5037 | ||
| W Towing | Is the load in kgf that can be moved by the Winch. | ||||||
| Note that the lower layers can handle even more load than indicated. | |||||||
| Customer must make their own assessment of conditions | |||||||
| Road/sand is the normal condition of the car | |||||||
| EAN | 7439657030055 |
|---|---|
| Weight | 49.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 0-5 |
