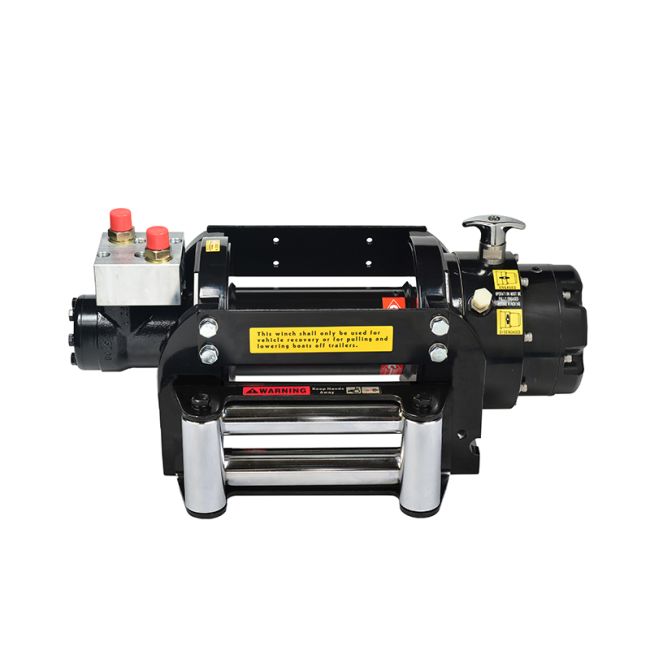

ComeUp HV-8 hydraulic winch (3600 kg)
€1,436.88 €1,187.50
The ComeUp HV-8 hydraulic winch with a lifting capacity of 3600 kg is a powerful device ideal for heavy-duty applications. Certified to EN 14492-1: 2006, it offers fast and variable retraction speeds for efficient work processes.
SKU
1.R.3
EAN Number:
7439657036088
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
ComeUp HV-8 Winch (3600 kg)
The ComeUp HV-8 Winch is a reliable workhorse that impresses with a lifting capacity of 3600 kg. Certified to EN 14492-1: 2006 Power Driven Winches, it meets the highest safety standards and is therefore ideal for use in vehicle recovery.
Technical specifications.
- Item number:
- Standard drum: PN 680816
- Long drum: PN 681091
- Standard drum with clutch left: PN 681123
- Long drum with coupling left: PN 681347
- Rated tractive force:
- 3630 kg (according to SAE J706 rating).
- 3560 kg (according to EN 14492-1 rating)
- Rope speed (on the 1st rope layer):
- 15 mpm at 60 l/min
- Working pressure:
- 150 bar
- Maximum oil flow:
- 60 l/min
- Hydraulic motor:
- 77.8 cm³/revolution
- Gear ratio:
- 2-stage planetary gearbox 16:1
- Drum diameter:
- Drum tube: 90 mm
- Drum flange: 201.5 mm
- Distance between flanges:
- Standard drum: 190 mm
- Long drum: 253 mm
- Bolt pattern mounting:
- Standard drum:
- 228.6 x 171.2 mm
- 311.2 x 114.3 mm
- Long drum:
- 291.6 x 171.2 mm
- 374.5 x 114.3 mm
- Recommended wire rope:
- Standard drum: 10 mm x 30 m
- Long drum: 10 mm x 40 m
- Steel cable with 1960 N/mm² (EIPS) and a minimum breaking strength of 69.8 kN
- Weight of Winch:
- Standard drum: 35.5 kg
- Long drum: 37.5 kg
- Total weight:
- Standard drum: 43.3 kg
- Long drum: 45.3 kg
- Packaging dimensions (L x W x H):
- Standard drum: 600 x 370 x 285 mm
- Long drum: 665 x 370 x 285 mm
Performance data:
| Traction force and rope capacity | Rope speed | |||
| Rope layer | Tensile force per layer, kg/lb | Total length of rope on drum, m / ft | At 60 l/min (15.9 g/min), mpm / fpm | |
| Standard drum | Long drum | |||
| 1e | 3.630 / 8.000 | 5,8 / 19,0 | 7,8 / 25,6 | 15,0 / 49,0 |
| 2e | 3.025 / 6.669 | 12,8 / 42,0 | 17,1 / 56,1 | 18,2 / 59,7 |
| 3e | 2.593 / 5.717 | 20,9 / 68,6 | 28,0 / 91,9 | 21,2 / 69,8 |
| 4e | 2.269 / 5.002 | 30 / 98 | 40 / 131 | 24,2 / 79,4 |
Accessories:
| Standard accessories | Optional accessories |
|
|
Applications
The ComeUp HV-8 Winch is PTO (Power Take Off) driven and is ideal for vehicle recovery and other heavy-duty applications. It offers fast and variable retracting speeds for efficient operations and has a highly efficient motor with constant torque.
Warning
The winch is not intended for moving or lifting people. The specified rated pulling force is based on the first layer of rope on the drum. The rope wound on the drum must remain 5 turns away from the drum.
Warranty
Each new winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase.
| EAN | 7439657036088 |
|---|---|
| Weight | 36.000000 |
| HS Code | 842531-00-90 |
| Energy source | Hydraulic |
| Speed (m/min) | 11-20 |
