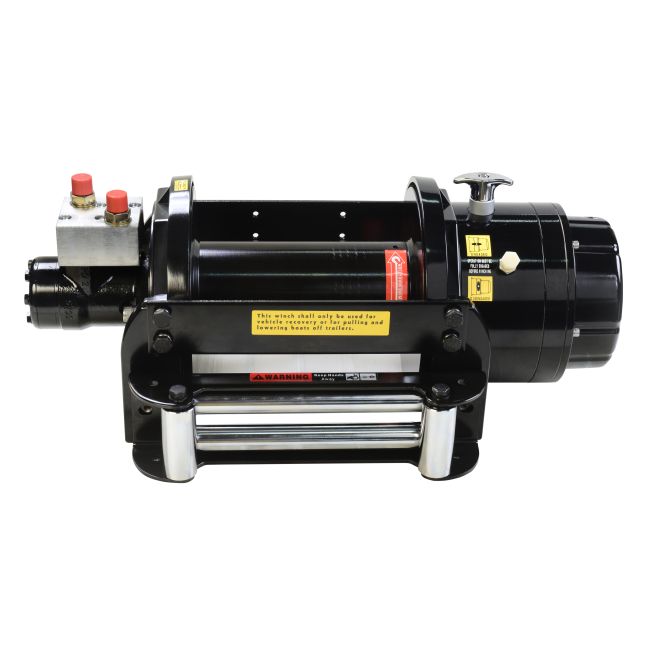

ComeUp HV-15 Winch / 6800 kg hydraulic towing winch
€1,942.66 €1,605.50
The HV-15 Winch is a powerful winch with a towing capacity of 6,800 kg. This winch is ideal for heavy duty applications in the vehicle repair industry. With a wide range of technical features, it offers high performance and reliability.
SKU
1.R.4
EAN Number:
7439657037030
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The HV-15 Winch (part number: PN 686732 / PN 687548) is a reliable and powerful winch designed for demanding vehicle recovery applications. With a lifting capacity of 6,800 kg according to EN 14492-1 and SAE J706 standards, it provides the necessary power to pull heavy loads.
Technical specifications:
- Operating pressure: 150 bar
- Maximum oil flow: 60 l/min
- Hydraulic motor: 156 cm³/revolution
- Gear ratio: 2-stage planetary gearbox 19.4:1
- Construction winch: Cast aluminum housing with steel drum
- Clutch (freewheel): Rotary gear
- Brake: Sprung gear brake with pressure relief valve
- Rope guide: Underwound rope guide
- Drum diameter: 127 mm
- Drum flange diameter: 252 mm
- Distance between flanges: 255 mm
- Mounting pattern: 303.5 x 114.3 mm / 368.5 x 171.2 mm
- Recommended cable thickness: 14 mm x 27 m (1,960 N/mm²) with a minimum breaking strength of 137 kN in accordance with SAE J706 and EN 14492-1
Applications:
Powered by a PTO (Power Take Off) driven pump, the HV-15 Winch offers fast and variable retraction speeds for efficient operation. The highly efficient hydraulic motor delivers constant torque, while the 2-position planetary gearbox enables high tractive effort. It is operated with an ergonomic T-handle for fast rope release. The integrated trailing brake and pressure relief valve ensure safe braking.
Dimensions:
- Winch weight: 72 kg
- Gross weight: 88 kg
- Package dimensions (L x W x H): 715 x 415 x 311 mm
Installation hydraulic system:
Accessories (standard):
- 245 mm sweeping wheel roller
- Pressure relief valve
Accessories (optional):
- Cable tensioner
- Air coupling
The HV-15 Winch meets the requirements of EN 14492-1 for winches for vehicle recovery and is certified to SAE J706, CE Machinery Directive 2006/42/EC. It is the ideal choice for professional use in vehicle recovery.
Performance data:
|
Traction force and rope capacity.
|
Rope speed
|
||
|
Position of the wire rope
|
Pull force per layer
kg / lb |
Total length of cable on drum, m / ft
|
At 60 l/min (15.9 g/min),
mpm / fpm |
|
1e
|
6.800 / 15.000
|
7,8 / 25,6
|
9,0 / 30,0
|
|
2e
|
5.673 / 12.507
|
17,3 / 56,8
|
10,5 / 34,4
|
|
3e
|
4.867 / 10.730
|
27,0 / 89,0
|
12,3 / 40,4
|
Accessories:
| Standard accessories | Optional accessories |
|
|
Warning:
The Winch is not intended for moving or lifting persons. The specified load capacity refers to the first position of the rope on the drum. The rope must remain at least 5 strokes away from the drum.
Warranty:
Each new Winch is warranted against defects in material and workmanship for a period of twelve months from the date of purchase.
| EAN | 7439657037030 |
|---|---|
| Weight | 88.000000 |
| HS Code | 842531-00-90 |
| Energy source | Hydraulic |
| Speed (m/min) | 0-5 |
