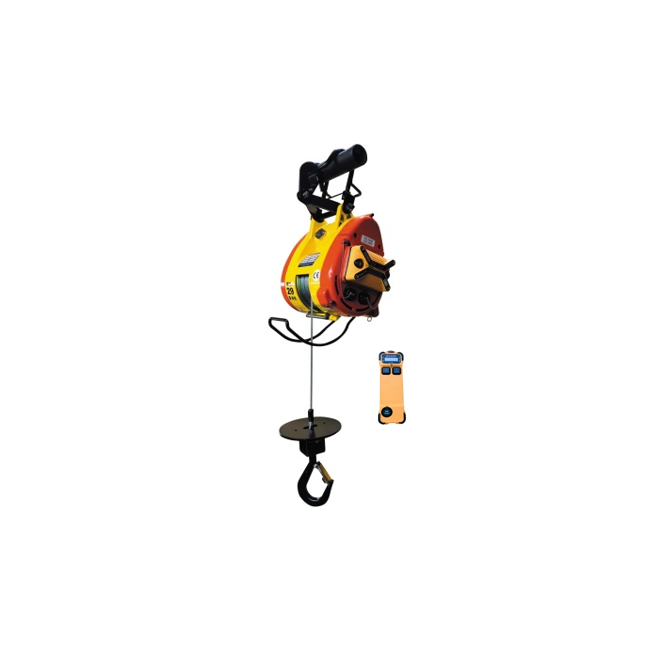

KIO KS-360 (kg) 230V 38 m - Electric Lifting Winch with hand control and radio remote control

KIO KS-360 (kg) 230V 38 m - High speed Electric Lifting Winch with hand control and radio remote control

This scaffolding winch offers a lifting capacity of 360 kg and a high lifting speed from bottom layer to top layer 15-20 m/min. You can operate the winch on the console on the winch or with the included radio remote control up to about 100 meters away.

It has a compact and lightweight design, is easy to install and has safety features such as upper and lower position a limit switch and an emergency stop function in the transmitter.

It has a compact and lightweight design, is easy to install and has safety features such as in the upper and lower city a limit switch and an emergency stop function in the transmitter.

Technical data:

• Lifting capacity: 360 kg
• Lifting speed: 15-20 m/min
• Motor: 1-phase, 220-240V: 1.8 kW x 8 A
• Protection class: IP44
• Gear ratio: 192:1
• Maximum lifting height: 37 m
• Braking methods: Electromagnetic for motor, dual mechanical ratchets
• Cable: 6 mm x 40 m
• Drum dimensions: 60 mm (length) x 90 mm (diameter) x 170 mm (diameter flange)
• Weight: 36 kg

Special features:

• Compact and lightweight design for easy installation
• Upper limit switch automatically stops the elevator when the rope is touched
• Lower limit switch stops the motor if the wire rope is not fully wound
• Dynamic and mechanical ratchet brake for safe braking
• Use with conventional power supply possible
• Wire rope with safety load hook
• Emergency stop switch on the transmitter

Warning: The winch must not be used for transporting or lifting persons. Keep hands, clothing, jewelry, etc. away from the wire rope, drum and other moving parts.

Warranty: Each new winch is guaranteed against manufacturing and material defects for a period of twelve months from the date of purchase. Cables are excluded from the warranty.

Accessories: power cord 7 m and industrial plug. .

Tokkelen:: never directly repeatedly raise and lower the winch (plucking). Or lift or lower short distances in quick succession (inching). Give it time!

Avoid slack rope and hoisting at an angle. This causes the rope to tangle. Coil the rope well with a weight before hoisting again.

Suspend the winch horizontally to allow the rope to wind properly.
