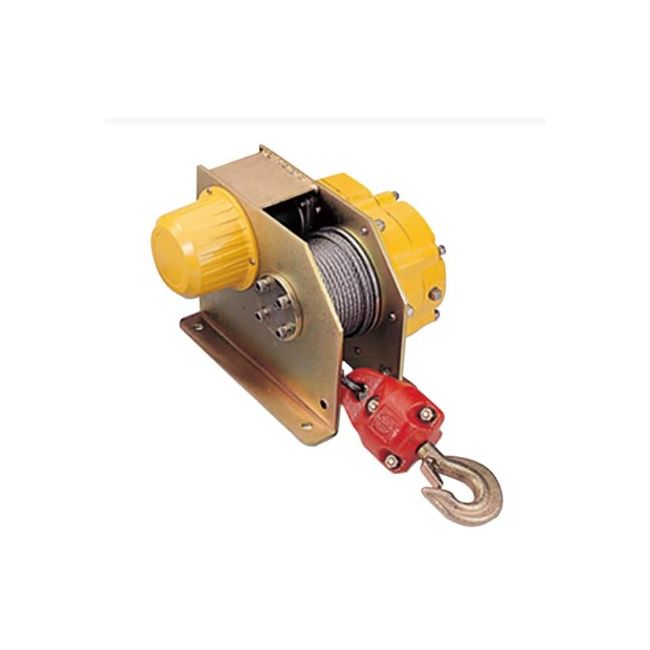

ComeUp DH 500 kg, 12 V, lifting height 12 m, speed 4 m/min
€1,185.80 €980.00
ComeUp DH 500 kg, 12 V, lifting height 12 m, speed 4 m/min
The COMEUP DH series hoist offers a new perspective for applications such as mobile vehicle crane hoists
The drum and cable system delivers maximum speed starting from the very first top layer.
The DH-series hoist is certified for the top layer of steel cable on the drum, with a duty cycle of 25% ED and a maximum starting frequency of 150 times per hour at a 63% load.
In addition, the DH-series hoist has successfully passed a 200-hour service life test at 100% load
SKU
1.L.3.a
EAN Number:
7439656975982
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
ComeUp DH 500 kg, 12 V, lifting height 12 m, speed 4 m/min
The COMEUP DH series hoist offers a new perspective for mobile vehicle crane hoists—hoists designed specifically for applications such as mobile vehicle crane hoists
The drum and cable system delivers maximum speed starting from the very first top layer.
The DH-series hoist is certified for the top layer of steel wire rope on the drum, with a duty cycle of 25% ED and a maximum starting frequency of 150 times per hour at 63% load.
In addition, the DH-series hoist has successfully passed a 200-hour service life test at 100% load
- Rated Line Lift: 500 kg (1,102 lb)
- Lifting Height: 12 m
- Lifting Speed: 3 mpm / 9.8 fpm (DH-500) āk
4 mpm / 13 fpm (DH-500A) - Motor Output: 300 W x 50 A at 12 V DC (DH-500)
300 W x 30A at 24 V DC (DH-500) - Power Supply: DC 12V (DH-500) / DC 24V (DH-500A)
- Gear Ratio: 276 :1
- Brake: Mechanical ratchet pawl provides instant and failsafe braking
- Drum Size: 95 mm x 76 mm (3.7” x 3.0”)
- Wire Rope: 6 .35 mm x 12 m (1/4” x 39’), Galvanized aircraft-grade A7 x 19
- Hook: Weight hook
- Controls:
- Type: Indirect
- Power cord: 5.5 mm² x 2C x 2.9 m
- Switch cord: 0.75 mm² x 3C x 4.4 m
- Pendant switch: CPB-161
- Control box: Yes
- Hoist Weight: 27 kg
- Gross Weight: 33 kg
- Box Dimensions: 330 x 330 x 275 mm
| EAN | 7439656975982 |
|---|---|
| Weight | 33.000000 |
| HS Code | 842531-00-90 |
| Applications | Boat trailers and water sports, Caravans and campers, Industry and workshops, Agriculture and forestry, Production lines and assembly, Theater and stage technology |
| Type of winch or parts | Lifting winch: Cutting load falls |
| Energy source | 12 V |
| Force | 501-2500 |
| Speed (m/min) | 0-5 |
| Cable length (m) | 11-20 |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | Manaul DH 500 12 V | 136.7 KB | Download |
