ComeUp CWG 500 (kg) TH 400V 127 m - Electric Lifting Winch
€3,018.95 €2,495.00
-

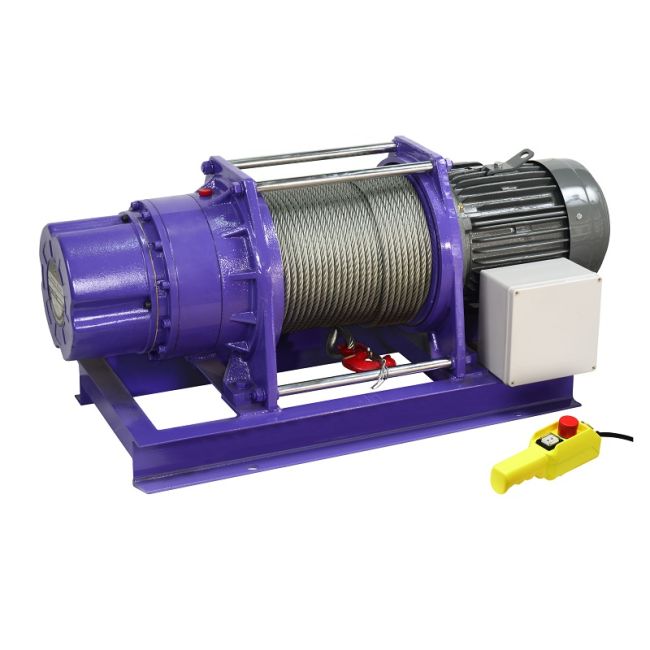

CWG-500TH
- Lifting capacity: 500 kg with top layer steel wire rope
- Lifting speed: 19 - 34 m/min
- Power source: 3 phase, 380-440V
- Motor rating IP54: 3.7 kW x 2 pole induction brake motor
- Maximum lifting height: 127 m
- Braking method: Electromagnetic spring operated safe brake
- Steel cable: 8 mm x 130 m, 6 x 19, with 2,970 breaking strength
- Drum length: 300 mm
- Drum Ø: 114.3 mm
- Drum flange diameter 240 mm
- Mounting bolt pattern: 460 mm x 300 mm
- Net weight, kg (standard version) : 155 kg
- Gross weight: 183 kg
- Housing dimensions (L x D x H) : 1,002 x 424 x 360 mm
- Tray dimensions (L x D x H) : 1,140 x 590 x 520 mm
Meets EN 14492-1 requirements :
SKU
CWG 500 TH
EAN Number:
7439657010088
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
CWG-500TH
- Lightweight and compact design is ideal for easy installation.
- Electromagnetic emergency brake with spring.
- Planetary gears for maximum mechanical efficiency.
- Cast steel foot mounts.
- Heavy-duty, efficient ball bearings on all running surfaces.
- Closed drum flanges to prevent rope entrapment between drum and support castings.
- Supplied with 24 VAC low voltage control as standard
- Rated capacity limiter limits motor drive power to prevent drum overload. Winch
Specification/part numbers.
- Lifting capacity: 500 kg with top layer of wire rope
- Lifting speed: 19 - 34 m/min
- Power source: 3 phase, 380-440 V
- Motor rating IP54: 3.7 kW x 2 pole induction brake motor
- Maximum lifting height: 127 m
- Braking method: Electromagnetic spring operated safe brake
- Steel cable: 8 mm x 130 m, 6 x 19, with 2,970 breaking strength
- Drum length: 300 mm
- Drum Ø: 114.3 mm
- Drum flange diameter 240 mm
- Mounting bolt pattern: 460 mm x 300 mm
- Net weight, kg (standard version) : 155 kg
- Gross weight: 183 kg
- Housing dimensions (L x D x H) : 1,002 x 424 x 360 mm
- Tray dimensions (L x D x H) : 1,140 x 590 x 520 mm
Meets EN 14492-1 requirements :
* For lifting applications:
The working coefficient for the first rope layer on the drum must be at least 5.
The D/d ratio to the center of the cable must be at least 15 for the drum.
A switch with emergency stop and limit functions are required.
* For pulling application:
The coefficient of use for the first rope layer on the drum must be at least 3.
The D/d ratio to the center of the rope must be at least 12 for the drum.
A switch with emergency stop and limit functions are required.
Lifting capacity, lifting speed and rope capacity:
|
Low steel wire rope
|
Lifting capacity, kg
|
Lifting speed, m/min at 50Hz
|
Total cable on drum, m |
|
1e
|
893
|
19
|
14 |
|
2e
|
789
|
22
|
30 |
|
3e
|
707
|
24
|
48 |
|
4e
|
641
|
27
|
67 |
|
5e
|
586
|
29
|
89 |
|
6e
|
540
|
32
|
112 |
|
7e
|
500
|
34
|
130 |
Note:
1 . All ratings are based on the top layer. For each layer reduction on the drum, the line pull is increased by 10%.
2. use a grip block for use with a double line to increase line pull by approximately 85%.
3. the pulling capacities are based on a pulling force and 15% friction has been taken into account (specific applications may vary).
Warning
The Winch is not intended for moving or lifting persons.
The rated lifting capacity shown is based on the top rope wrap on the drum.
The rope wrap on the drum must remain 5 wraps from the drum
Warranty
Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase.
CABLES ARE NOT COVERED UNDER WARRANTY.
Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase.
CABLES ARE NOT COVERED UNDER WARRANTY.
Size, mm/in:
Accessories:
| Standard Accessories. | Option Accessories |
|
|
| EAN | 7439657010088 |
|---|---|
| Weight | 135.000000 |
| HS Code | 842531-00-90 |
| Energy source | 400 VAC |
| Force | 201-500 |
| Speed (m/min) | 11-20 |
| Cable length (m) | 11-20 |
